Complement deficiencies

Complement deficiencies

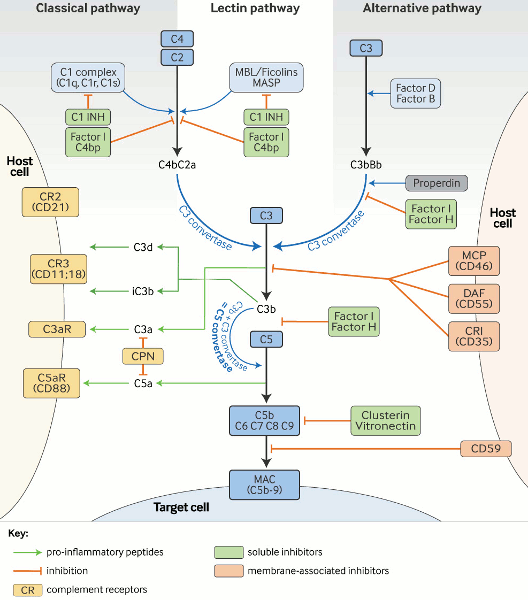

Complement cascade: activation and regulation. Complement is activated via three pathways, the classical, the alternative, and the lectin pathways. This results in: (1) the generation of various pro-inflammatory peptides, which bind to specific receptors on multiple immune cells, as well as (2) the assembly of the membrane attack complex, C5b-9 (MAC). On each level of the cascade reaction, complement is tightly regulated by soluble and membrane-associated inhibitors. Key: C1-INH = C1 inhibitor; C4bp = C4 binding protein; CPN = carboxypeptidase N; DAF = decay accelerating factor; MAC = membrane attack complex; MASP = MBL-associated serine protease; MBL = mannose-binding lectin; MCP = mebrane cofactor protein

Adapted from a figure provided by Michael Kirschfink DVM, PhD; used with permission
