New-onset atrial fibrillation
Atrial fibrillation
From the collections of Arti N. Shah and Bharat K. Kantharia
See this image in context in the following section/s:

New-onset atrial fibrillation

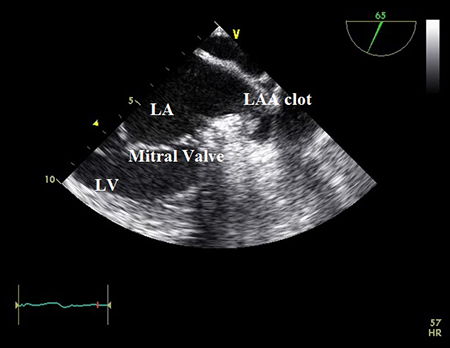

Transesophageal echocardiogram showing left atrial appendage clot. LA=left atrium; LAA=left atrial appendage; LV=left ventricle
From the collection of Dr Bharat Kantharia
See this image in context in the following section/s:

New-onset atrial fibrillation
Multiple wavelets of atrial fibrillation compete with each other in the atrium and bombard the atrioventricular node with many signals.
From: Cox D, Dougall H. Student BMJ. 2001;09:399-442
See this image in context in the following section/s:

New-onset atrial fibrillation

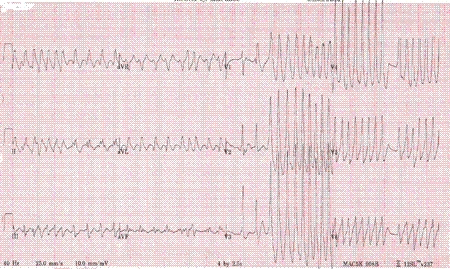

Atrial fibrillation with Wolff-Parkinson-White syndrome
From the collections of Arti N. Shah and Bharat K. Kantharia
See this image in context in the following section/s:

New-onset atrial fibrillation

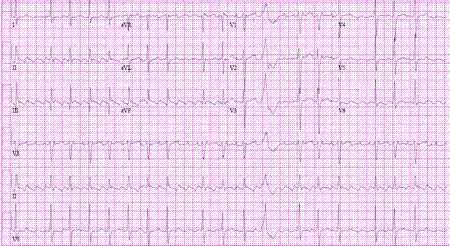

Multifocal atrial tachycardia
From the collections of Arti N. Shah and Bharat K. Kantharia
See this image in context in the following section/s:

New-onset atrial fibrillation

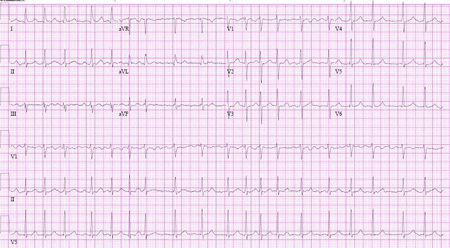

Atrial fibrillation
From the collections of Arti N. Shah and Bharat K. Kantharia
See this image in context in the following section/s:

New-onset atrial fibrillation

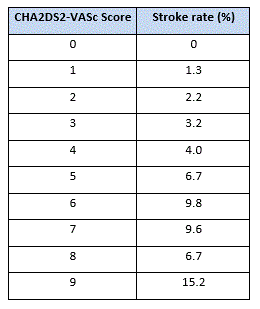

CHA₂DS₂-VASc (congestive heart failure/left ventricular dysfunction, hypertension, age ≥75 years [doubled], diabetes, stroke [doubled], vascular disease, age 65-74 years, sex category [female])
Adapted from January CT, Wann LS, Alpert JS, et al. 2014 AHA/ACC/HRS guideline for the management of patients with atrial fibrillation: a report of the American College of Cardiology/American Heart Association Task Force on Practice Guidelines and the Heart Rhythm Society. J Am Coll Cardiol. 2014 Dec 2;64(21):e1-76
See this image in context in the following section/s:

New-onset atrial fibrillation

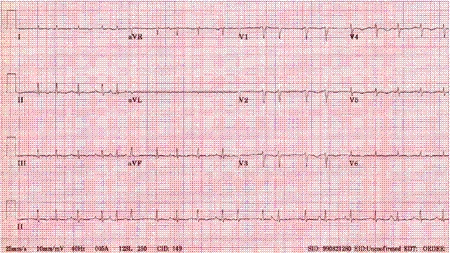

Atrial flutter
From the collections of Arti N. Shah and Bharat K. Kantharia
See this image in context in the following section/s:
Videos
- How to perform an ECG: animated demonstration
How to record an ECG. Demonstrates placement of chest and limb electrodes.
